goniometer

The GoniometerLayer displays a Goniometer (Protractor) to measure angles in degrees with.

note

iOS only at the moment.

Field Configurations

Key	Type	Description	Default Value
"centerDotColor"	Color	The color of the dot in the center	"#5f3cb6"
"dotSize"	Number	The size of the dot	5
"font"	String	undefined	null
"fontColor"	Color	undefined	"#5dbcd2"
"fontSize"	UnitSize	Font size to use.	14
"lineSize"	Number	undefined	1
"referenceLineColor"	Color	undefined	"#5f3cb6"
"rotation"	GoniometerRotation	The type of the rotation	null
"staticLineColor"	Color	undefined	"#5dbcd2"
"textAlign"	String	undefined	null

Inherited

From Base Layer

Base Layer

Field Configurations

Key	Type	Description	Default Value
"_value"	Value	[PREVIEW] Dynamic value of the layer.	null
"actions"	ActionList	List of actions, which will be executed when the layer is tapped.	null
"borderColor"	Color	The color of the border in hex color value.	null
"borderRadius"	UnitSize	The radius applies to all corners; with a borderWidth of 0 the border is not drawn and radius is set anyway.	0
"borderWidth"	UnitSize	The width of the border.	0
"bottomLeftRadius"	UnitSize	Radius for the bottom left corner.	0
"bottomRightRadius"	UnitSize	Radius for the bottom right corner.	0
"classes"	Array	List of classes for layer styles.	null
"conditions"	Conditions	List of conditions to alter the layer state.	null
"constraints"	Constraints	A list of constraints defining the position of the layer in a layout.	null
"consumesKeyboard"	Boolean	This layer will be used to shrink, if a keyboard is shown.	null
"dataKey"	String	Name for assigning data to this layer.	null
"hidden"	Boolean	Indicates whether the layer is hidden. Default: false.	false
"layerRotation"	Number	The layer is rotated by the specified degree.	0
"name"	String	Unique name in the layout. Used for alignment or actions.	null
"opacity"	Number	The opacity of the layer.	1
"overInsetBottom"	Boolean	Determines if this layer ignores the save space at the bottom of the device.	false
"overInsetTop"	Boolean	Determines if this layer ignores the save space at the top of the device.	false
"safeArea"	SafeAreaTypeObject	Determines the safe area behaviour.	null
"shadowElevation"	Number	The elevation of this layer for casting shadows.	0
"state"	String	The state the layer will use as default.	"default"
"states"	LayerStates	A list of named states that affect the appearance of the layer.	null
"topLeftRadius"	UnitSize	Radius for the top left corner.	0
"topRightRadius"	UnitSize	Radius for the top right corner.	0
"touchFeedback"	TouchFeedback	Determines if the layer should show a touch feedback if touched.	"visible"
"trackingKey"	String	Defines a key for a scroll event.	null
"type"	LayerType	The type of the layer	null
"value"	Value	(Initial) value of the layer.	null

Examples

Example 1: Add a simple goniometer

Goal: Add a goniometer in the center of the screen and toggled on and off.

To start, add a container layer to the layout and insert the goniometer.

{
  "name": "container",
  "type": "container",
  "classes": [
    "fullSize"
  ],
  "children": [
    {
      "name": "goniometer",
      "dataKey": "goniometer",
      "type": "goniometer",
      "rotation": "portrait",
      "lineSize": 4,
      "dotSize": 10,
      "staticLineColor": "#77b400",
      "referenceLineColor": "#F07D00",
      "centerDotColor": "#3CA937",
      "fontSize": "30dp",
      "textAlign": "alignCenter",
      "classes": [
        "textWhite"
      ],
      "constraints": [
        {
          "type": "pos",
          "x": "0",
          "y": "0"
        },
        {
          "type": "size",
          "width": "100%"
        },
        {
          "type": "aspectRatio",
          "ratio": "1.0"
        }
      ]
    }
  ]
}

A goniometer was added to the layout with a portrait rotation. The client_template will be created in the next step.

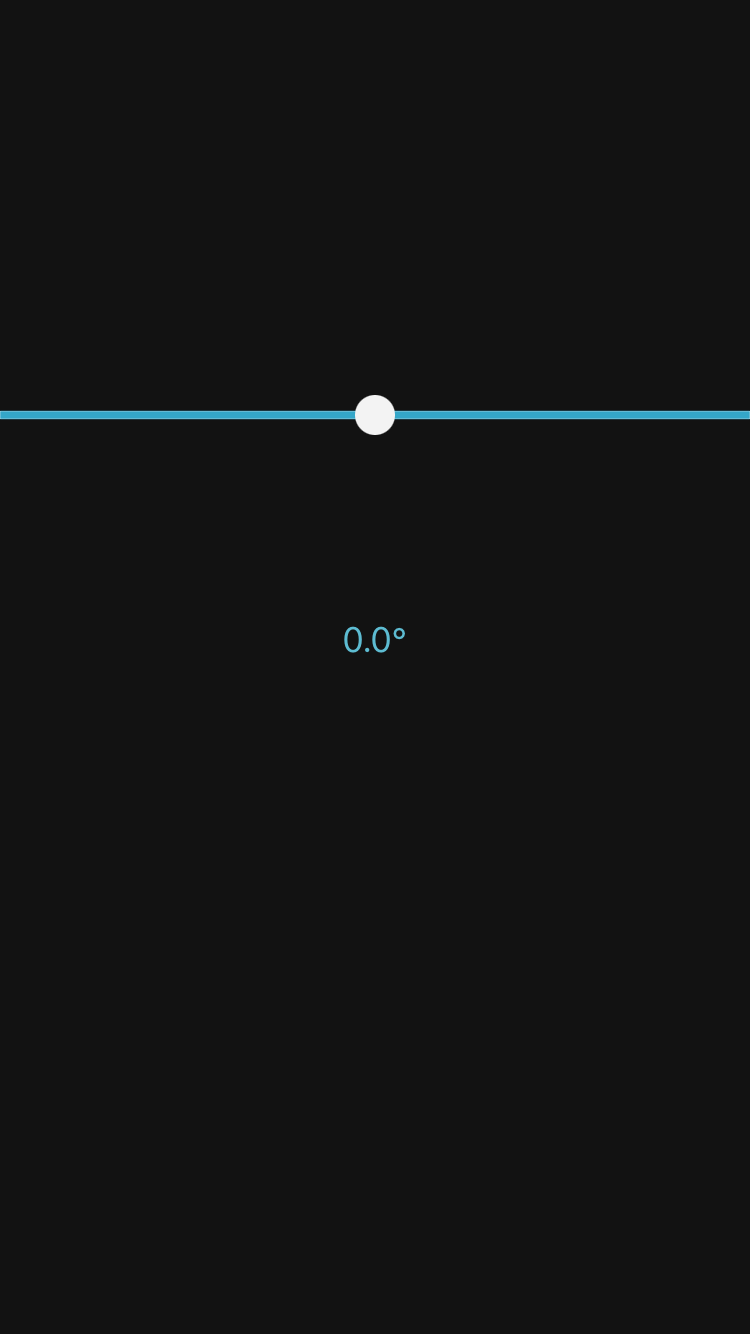

Result:

A goniometer has been created.

Add the buttons and corresponding actions under the goniometer layer.

{
  "name": "buttonContainer",
  "dataKey": "buttonContainer",
  "type": "container",
  "constraints": [
    {
      "type": "pos",
      "anchor": "sw",
      "relativeAnchor": "sw",
      "x": "0dp",
      "y": "0dp"
    },
    {
      "type": "size",
      "width": "100%",
      "height": "150dp"
    }
  ],
  "children": [
    {
      "name": "reset",
      "dataKey": "reset",
      "type": "image",
      "value": "internal://remove",
      "tint": "34a7c9",
      "scaleType": "scaleAspectFit",
      "constraints": [
        {
          "type": "pos",
          "anchor": "sw",
          "relativeAnchor": "sw",
          "x": "5%",
          "y": "-5%"
        },
        {
          "type": "size",
          "width": "25%",
          "height": "150dp"
        }
      ],
      "actions": [
        {
          "type": "layerAction",
          "params": {
            "layerName": "goniometer",
            "actions": [
              {
                "type": "reset"
              }
            ]
          }
        }
      ]
    },
    {
      "name": "calibrate",
      "dataKey": "calibrate",
      "type": "image",
      "value": "internal://check",
      "tint": "34a7c9",
      "scaleType": "scaleAspectFit",
      "constraints": [
        {
          "type": "pos",
          "anchor": "se",
          "relativeAnchor": "se",
          "x": "-5%",
          "y": "-5%"
        },
        {
          "type": "size",
          "width": "25%",
          "height": "150dp"
        }
      ],
      "actions": [
        {
          "type": "layerAction",
          "params": {
            "layerName": "goniometer",
            "actions": [
              {
                "type": "toggleGoniometer"
              }
            ]
          }
        }
      ]
    }
  ]
}

The buttons with toggleGoniometer and reset actions are created.

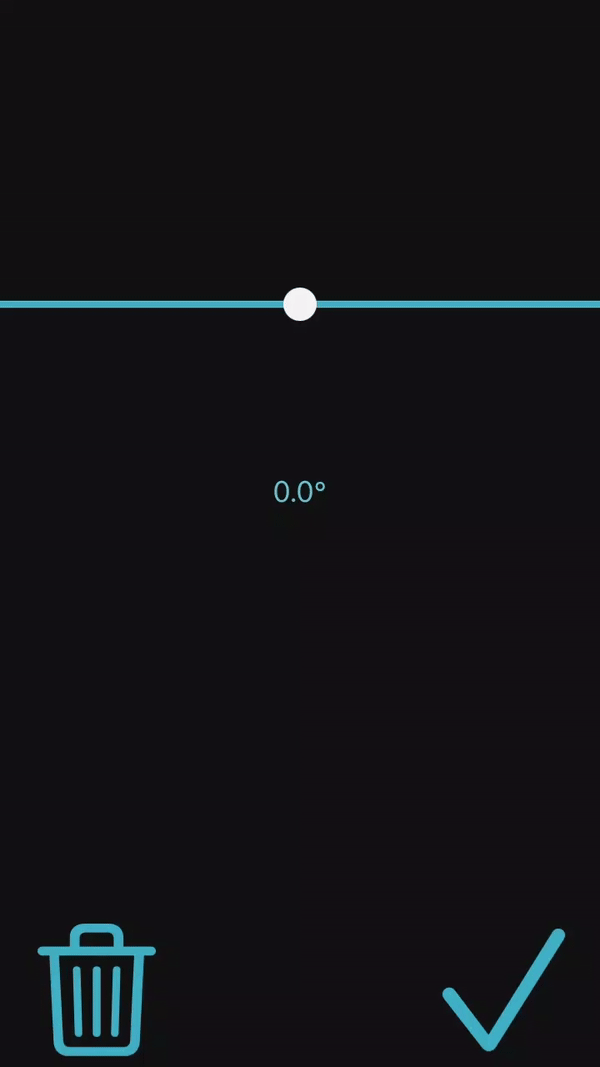

Result:

A goniometer layer with actions has been created.
