selectBox

A form select box can be created by the type selectBox.

Field Configurations

Key	Type	Description	Default Value
"arrowIndicator"	Boolean	Wether to show an arrow indicating the drop down menu.	true
"emptyText"	String	If the current form value does not match any available value, this text will be displayed. Otherwise this text will not be part of the list of available values.	null
"font"	String	The font to use.	null
"fontColor"	Color	The font color.	"#000000"
"fontScalable"	Boolean,String	Determines if this font will be scaled by the OS font scale factor.	false
"fontSize"	UnitSize	The font size to use.	"15px"
"lineBreakMode"	LineBreakMode	The line break mode of the text.	"truncateEnd"
"maxLines"	Number	Maximum number of lines of the text label. 0 means any line count.	1
"query"	String	Query to use.	null
"queryParams"	Array	The params to append to the query.	null
"scaleType"	ScaleType	Defines both horizontal and vertical alignment of the text label.	"alignLeft"
"table"	String	The table name to use for the query.	null
"template"	String	The template to use.	null
"values"	Array	undefined	null

Inherited

From Form Layer

Form Layer

Field Configurations

Key	Type	Description	Default Value
"form"	String	Name of the form e.g. used to access the value of the form outside of its view.	null
"formDataKey"	String	Datakey used to access the value of the form layer.	null
"onChanged"	Array	Actions to execute when the form value is changed.	null
"settingsDataKey"	String	If set, the value of the form layer will be written into the _settings table. DEPRECATED Use onChanged to save values in the database.	null
"validationErrorMessage"	String	Message to display in case the input is invalid.	null
"validationExpression"	String	Regex to use in the validateForm action.	null
"valueActionIndex"	String	Index of the value action.	null
"valueActions"	Array	Actions to be executed when a specified value is set e.g. hiding a layer when a checkbox is selected.	null

From Base Layer

Base Layer

Field Configurations

Key	Type	Description	Default Value
"_value"	Value	[PREVIEW] Dynamic value of the layer.	null
"accessibilityAppendState"	String	Defines this layer appends its state to the accessibility text.	null
"accessibilityText"	String	Text for accessibility navigation. Can be translated.	null
"actions"	ActionList	List of actions, which will be executed when the layer is tapped.	null
"borderColor"	Color	The color of the border in hex color value.	null
"borderRadius"	UnitSize	The radius applies to all corners; with a borderWidth of 0 the border is not drawn and radius is set anyway.	0
"borderWidth"	UnitSize	The width of the border.	0
"bottomLeftRadius"	UnitSize	Radius for the bottom left corner.	0
"bottomRightRadius"	UnitSize	Radius for the bottom right corner.	0
"classes"	Array	List of classes for layer styles.	null
"conditions"	Conditions	List of conditions to alter the layer state.	null
"constraints"	Constraints	A list of constraints defining the position of the layer in a layout.	null
"consumesKeyboard"	Boolean	This layer will be used to shrink, if a keyboard is shown.	null
"dataKey"	String	Name for assigning data to this layer.	null
"focusColor"	Color	The highlight color of this layer when it is focused. Mainly used on TV. If no color is provided, the pressedColor will be used.	null
"hidden"	Boolean	Indicates whether the layer is hidden. Default: false.	false
"isAccessibilityElement"	String	Defines if this layer is important for accessibility navigation. The default depends on the layer type.	null
"layerRotation"	Number	The layer is rotated by the specified degree.	0
"name"	String	Unique name in the layout. Used for alignment or actions.	null
"opacity"	Number	The opacity of the layer.	1
"overInsetBottom"	Boolean	Determines if this layer ignores the save space at the bottom of the device.	false
"overInsetTop"	Boolean	Determines if this layer ignores the save space at the top of the device.	false
"pressedColor"	Color	The highlight color of this layer when it is pressed. Mainly used on TV. If no color is provided, the focusColor will be used.	null
"safeArea"	SafeAreaTypeObject	Determines the safe area behaviour.	null
"shadowElevation"	Number	The elevation of this layer for casting shadows.	0
"state"	String	The state the layer will use as default.	"default"
"states"	LayerStates	A list of named states that affect the appearance of the layer.	null
"topLeftRadius"	UnitSize	Radius for the top left corner.	0
"topRightRadius"	UnitSize	Radius for the top right corner.	0
"touchFeedback"	TouchFeedback	Determines if the layer should show a touch feedback if touched.	"visible"
"trackingKey"	String	Defines a key for a scroll event.	null
"type"	LayerType	The type of the layer	null
"value"	Value	(Initial) value of the layer.	null

Examples

Example 1: Create a selct box with static values

Goal: Create a selectBox with static values.

Use the values field to list possible values.

{
  "type": "selectBox",
  "form": "quiz",
  "formDataKey": "favoriteColor",
  "font": "Raleway-Regular",
  "fontColor": "#F3F3F3",
  "fontSize": "16pt",
  "value": "select",
  "values": [
    {
      "value": "select",
      "display": "Select your favorite color!"
    },
    {
      "value": "#00F400",
      "display": "Green"
    },
    {
      "value": "#FF0000",
      "display": "Red"
    }
  ],
  "constraints": [
    {
      "type": "pos",
      "anchor": "c",
      "x": "50%",
      "y": "20%"
    },
    {
      "type": "size",
      "height": "50pt",
      "width": "80%"
    }
  ]
}

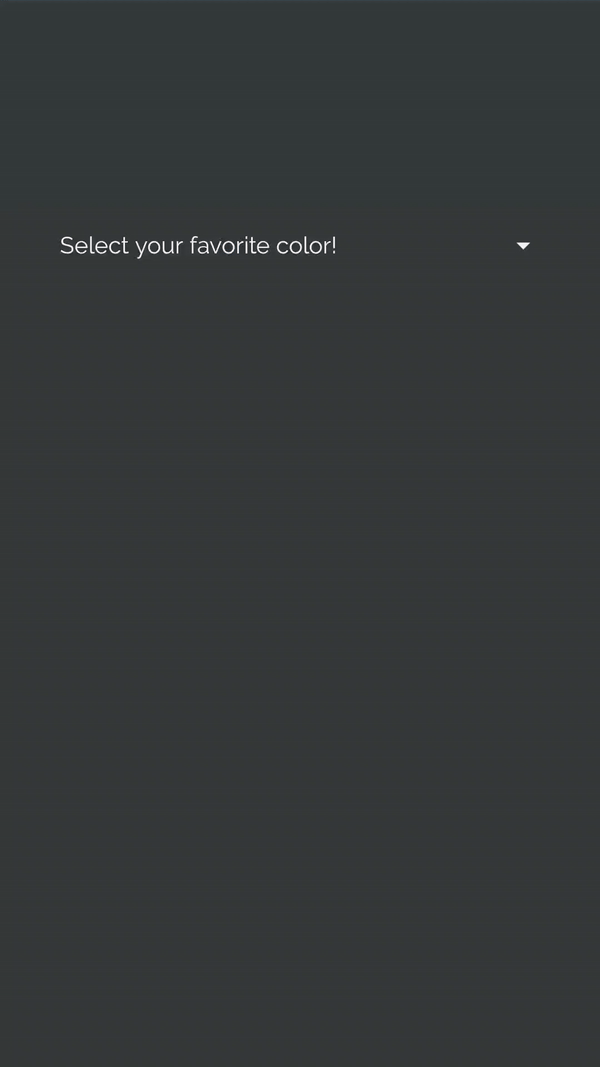

The initial appearance of the selectBox displaying our preselected value and the appearance of the selectBox when clicking on it.

Result:

A selectBox with static values has been created.

Example 2

Goal: Create a selectBox with dynamic values.

Retrieve data from a table using table, query, and template field.

{
  "type": "selectBox",
  "form": "quiz",
  "formDataKey": "favoriteSport",
  "font": "Raleway-Regular",
  "fontColor": "#34A7C9",
  "fontSize": "16pt",
  "table": "userQuiz",
  "query": "sports",
  "template": "quizTemplate",
  "constraints": [
    {
      "type": "pos",
      "anchor": "c",
      "x": "50%",
      "y": "20%"
    },
    {
      "type": "size",
      "height": "50pt",
      "width": "80%"
    }
  ]
}

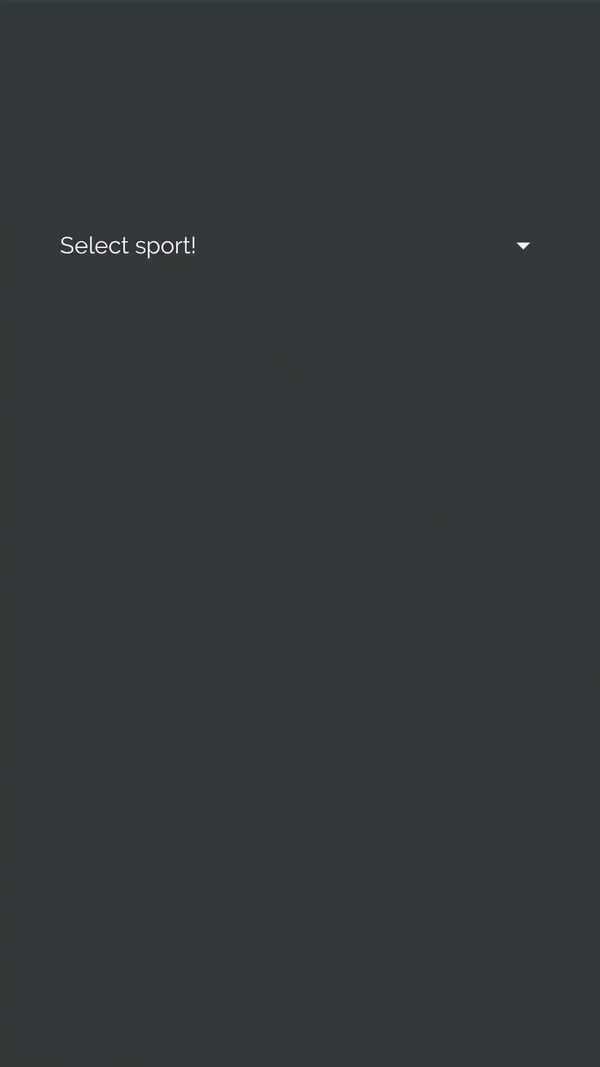

The data for the selectBox is retrieved from the userQuiz table.

Result:

A selectBox with dynamic values has been created.
