color

The color layer creates a colored area of the chosen color. It is most commonly used to create a background plane or to visually distinguish different elements from one another. The color layer can be used everywhere you can usually define layers.
To use the color layer it is important to set a value in form of a hex color code, i.e. #000000 for black or #ffffff for white, otherwise your color layer will be transparent.

Inherited

From Base Layer

Base Layer

Field Configurations

Key	Type	Description	Default Value
"_value"	Value	[PREVIEW] Dynamic value of the layer.	null
"accessibilityAppendState"	String	Defines this layer appends its state to the accessibility text.	null
"accessibilityText"	String	Text for accessibility navigation. Can be translated.	null
"actions"	ActionList	List of actions, which will be executed when the layer is tapped.	null
"borderColor"	Color	The color of the border in hex color value.	null
"borderRadius"	UnitSize	The radius applies to all corners; with a borderWidth of 0 the border is not drawn and radius is set anyway.	0
"borderWidth"	UnitSize	The width of the border.	0
"bottomLeftRadius"	UnitSize	Radius for the bottom left corner.	0
"bottomRightRadius"	UnitSize	Radius for the bottom right corner.	0
"classes"	Array	List of classes for layer styles.	null
"conditions"	Conditions	List of conditions to alter the layer state.	null
"constraints"	Constraints	A list of constraints defining the position of the layer in a layout.	null
"consumesKeyboard"	Boolean	This layer will be used to shrink, if a keyboard is shown.	null
"dataKey"	String	Name for assigning data to this layer.	null
"focusColor"	Color	The highlight color of this layer when it is focused. Mainly used on TV. If no color is provided, the pressedColor will be used.	null
"hidden"	Boolean	Indicates whether the layer is hidden. Default: false.	false
"isAccessibilityElement"	String	Defines if this layer is important for accessibility navigation. The default depends on the layer type.	null
"layerRotation"	Number	The layer is rotated by the specified degree.	0
"name"	String	Unique name in the layout. Used for alignment or actions.	null
"opacity"	Number	The opacity of the layer.	1
"overInsetBottom"	Boolean	Determines if this layer ignores the save space at the bottom of the device.	false
"overInsetTop"	Boolean	Determines if this layer ignores the save space at the top of the device.	false
"pressedColor"	Color	The highlight color of this layer when it is pressed. Mainly used on TV. If no color is provided, the focusColor will be used.	null
"safeArea"	SafeAreaTypeObject	Determines the safe area behaviour.	null
"shadowElevation"	Number	The elevation of this layer for casting shadows.	0
"state"	String	The state the layer will use as default.	"default"
"states"	LayerStates	A list of named states that affect the appearance of the layer.	null
"topLeftRadius"	UnitSize	Radius for the top left corner.	0
"topRightRadius"	UnitSize	Radius for the top right corner.	0
"touchFeedback"	TouchFeedback	Determines if the layer should show a touch feedback if touched.	"visible"
"trackingKey"	String	Defines a key for a scroll event.	null
"type"	LayerType	The type of the layer	null
"value"	Value	(Initial) value of the layer.	null

Examples

Example 1: Create a colored background

Goal: Create a background plane in the desired color spanning the whole screen.

To achieve this the following code can be used:

{
  "type": "color",
  "name": "backgroundColor",
  "value": "#34a7c9",
  "constraints": [
    {
      "type": "pos",
      "x": "0pt",
      "y": "0pt"
    },
    {
      "type": "pos",
      "x": "0pt",
      "y": "0pt",
      "anchor": "se",
      "relativeAnchor": "se"
    }
  ]
}

The value of the color layer is set to #1c8fc2 for a medium blue.
To have the color layer spanning the whole screen, the constraints are set accordingly from the top left to the bottom right corner of the display.

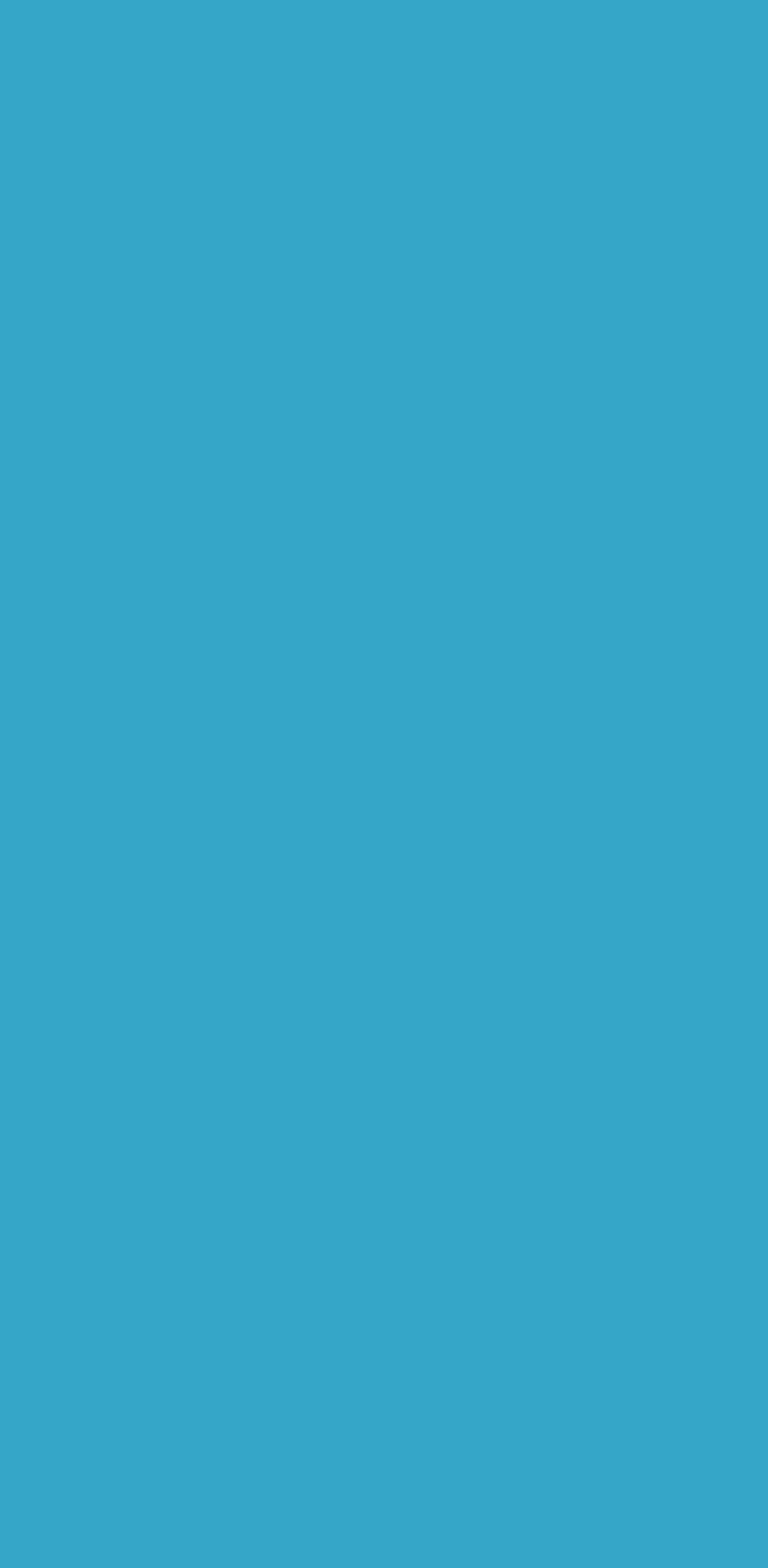

Result:

A color layer that covers the entire screen of the phone has been created.

Example 2: Create two elements that stand out visually from each other

Goal: Create two colored areas with different color values to easily distinguish them from the background and each other.

For this two additional layers of the type: color need to be defined, as seen in the following code:

{
  "type": "color",
  "name": "backgroundColor",
  "value": "#34a7c9",
  "constraints": [
    {
      "type": "pos",
      "x": "0pt",
      "y": "0pt"
    },
    {
      "type": "pos",
      "x": "0pt",
      "y": "0pt",
      "anchor": "se",
      "relativeAnchor": "se"
    }
  ]
}

{
  "type": "color",
  "name": "area1",
  "value": "#f3f3f3",
  "constraints": [
    {
      "type": "pos",
      "x": "50pt",
      "y": "50pt"
    },
    {
      "type": "pos",
      "x": "-50pt",
      "y": "-300pt",
      "anchor": "se",
      "relativeAnchor": "se"
    }
  ]
}

{
  "type": "color",
  "name": "area2",
  "value": "#2b2f2f",
  "constraints": [
    {
      "type": "pos",
      "x": "70pt",
      "y": "200pt"
    },
    {
      "type": "pos",
      "x": "-70pt",
      "y": "-70pt",
      "anchor": "se",
      "relativeAnchor": "se"
    }
  ]
}

The layer with the name: backgroundColor is the same as in the previous example. The other two layers named area1 and area2, are the elements that should stand out visually from each other. Therefore different values and constraints are set for each layer, which means that they differ in color, position and size.

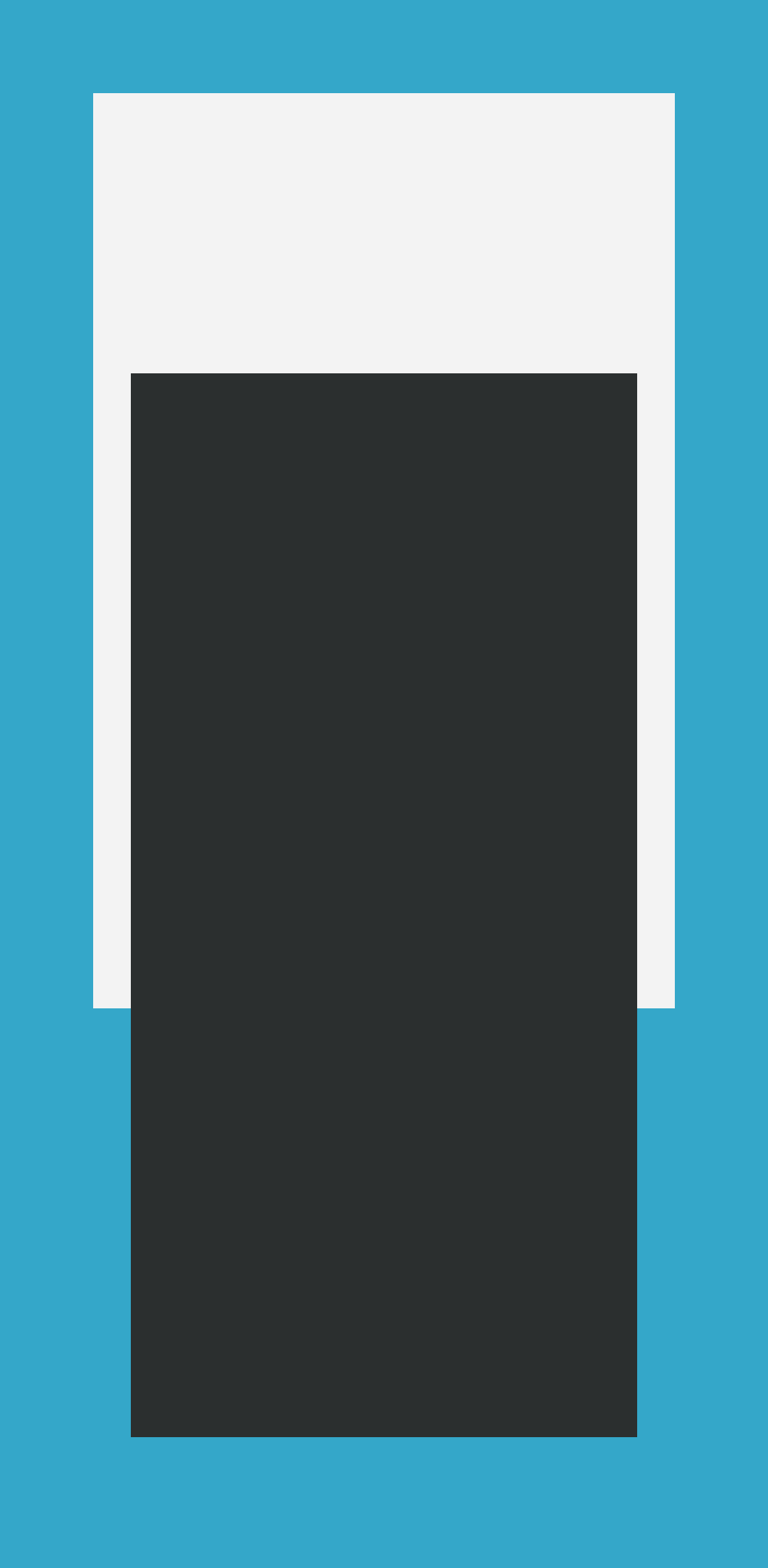

Result:

Two additional color layers which visually stand out from each other have been created.
