text

Creates a text layer. The value is the text to be displayed. Alternatively, the text layer can also be used to display FontAwesome icons. To do so, simply set the font to FontAwesome and select a FontAwesome icon as the value.

Field Configurations

Key	Type	Description	Default Value
"applyBackgroundPaddingToText"	Boolean	undefined	null
"background"	Color	The color behind the text.	"#00000000"
"backgroundPadding"	UnitSize	undefined	null
"contentType"	TextContentType	Type of text to be rendered	"autohtml"
"font"	String	The font of this text.	null
"fontBold"	String	The font for bold parts of this text.	null
"fontBoldItalic"	String	The font for bold-italic parts of this text.	null
"fontColor"	Color	The color of this text.	"light: \"#000000\", dark: \"#ffffff\""
"fontItalic"	String	The font for italic parts of this text.	null
"fontScalable"	Boolean,String	Determines if this font will be scaled by the OS font scale factor.	false
"fontSize"	UnitSize	The font size. The usage of pt is recommended.	"15dp"
"lineBreakMode"	LineBreakMode	The line break mode of the text.	"truncateEnd"
"maxLines"	Number	0 means variable lines.	0
"onUpdateAnimationEnabled"	Boolean	undefined	null
"openLinksAlert"	Boolean	undefined	null
"openLinksExternally"	Boolean	undefined	null
"scaleType"	ScaleType	Defines how an element should fit into the layer's frame.	null
"selectable"	Boolean	undefined	null
"textAlign"	TextAlign	The alignment of the text.	null
"value"	String,Object	undefined	null

Inherited

From Base Layer

Base Layer

Field Configurations

Key	Type	Description	Default Value
"_value"	Value	[PREVIEW] Dynamic value of the layer.	null
"accessibilityAppendState"	String	Defines this layer appends its state to the accessibility text.	null
"accessibilityText"	String	Text for accessibility navigation. Can be translated.	null
"actions"	ActionList	List of actions, which will be executed when the layer is tapped.	null
"borderColor"	Color	The color of the border in hex color value.	null
"borderRadius"	UnitSize	The radius applies to all corners; with a borderWidth of 0 the border is not drawn and radius is set anyway.	0
"borderWidth"	UnitSize	The width of the border.	0
"bottomLeftRadius"	UnitSize	Radius for the bottom left corner.	0
"bottomRightRadius"	UnitSize	Radius for the bottom right corner.	0
"classes"	Array	List of classes for layer styles.	null
"conditions"	Conditions	List of conditions to alter the layer state.	null
"constraints"	Constraints	A list of constraints defining the position of the layer in a layout.	null
"consumesKeyboard"	Boolean	This layer will be used to shrink, if a keyboard is shown.	null
"dataKey"	String	Name for assigning data to this layer.	null
"focusColor"	Color	The highlight color of this layer when it is focused. Mainly used on TV. If no color is provided, the pressedColor will be used.	null
"hidden"	Boolean	Indicates whether the layer is hidden. Default: false.	false
"isAccessibilityElement"	String	Defines if this layer is important for accessibility navigation. The default depends on the layer type.	null
"layerRotation"	Number	The layer is rotated by the specified degree.	0
"name"	String	Unique name in the layout. Used for alignment or actions.	null
"opacity"	Number	The opacity of the layer.	1
"overInsetBottom"	Boolean	Determines if this layer ignores the save space at the bottom of the device.	false
"overInsetTop"	Boolean	Determines if this layer ignores the save space at the top of the device.	false
"pressedColor"	Color	The highlight color of this layer when it is pressed. Mainly used on TV. If no color is provided, the focusColor will be used.	null
"safeArea"	SafeAreaTypeObject	Determines the safe area behaviour.	null
"shadowElevation"	Number	The elevation of this layer for casting shadows.	0
"state"	String	The state the layer will use as default.	"default"
"states"	LayerStates	A list of named states that affect the appearance of the layer.	null
"topLeftRadius"	UnitSize	Radius for the top left corner.	0
"topRightRadius"	UnitSize	Radius for the top right corner.	0
"touchFeedback"	TouchFeedback	Determines if the layer should show a touch feedback if touched.	"visible"
"trackingKey"	String	Defines a key for a scroll event.	null
"type"	LayerType	The type of the layer	null
"value"	Value	(Initial) value of the layer.	null

Examples

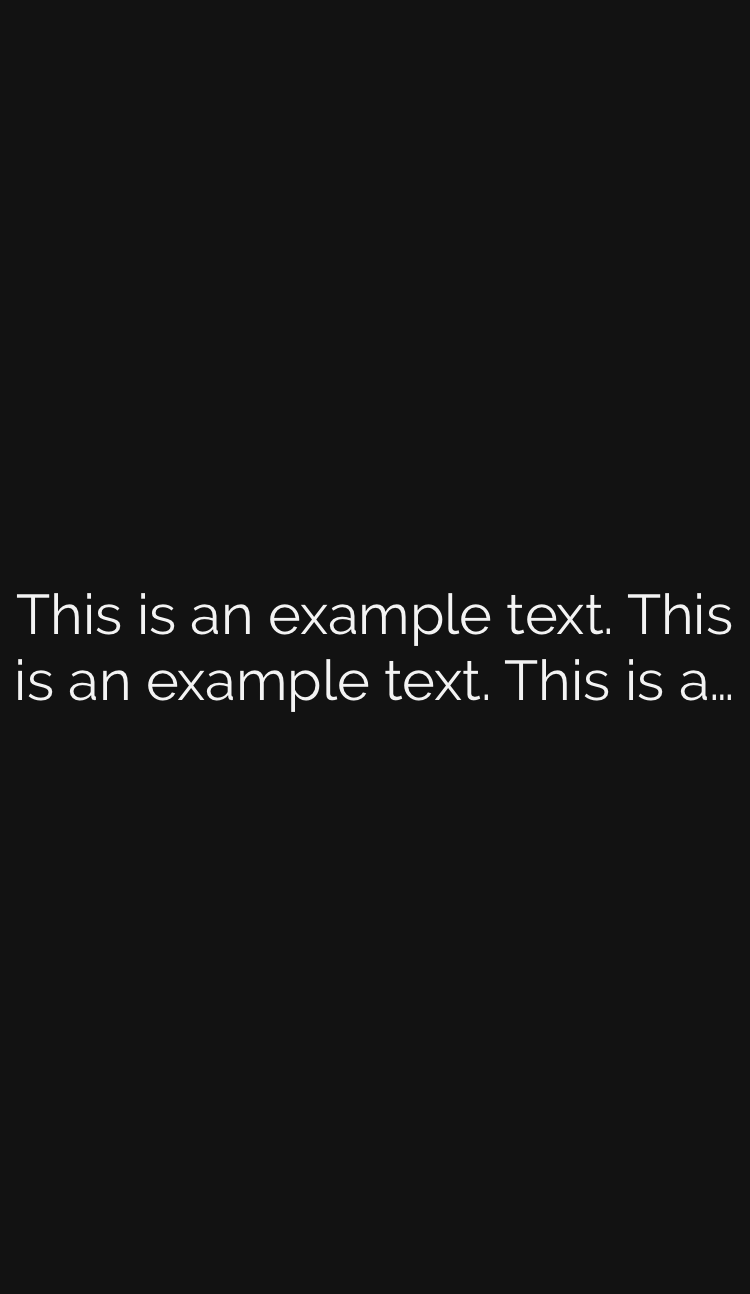

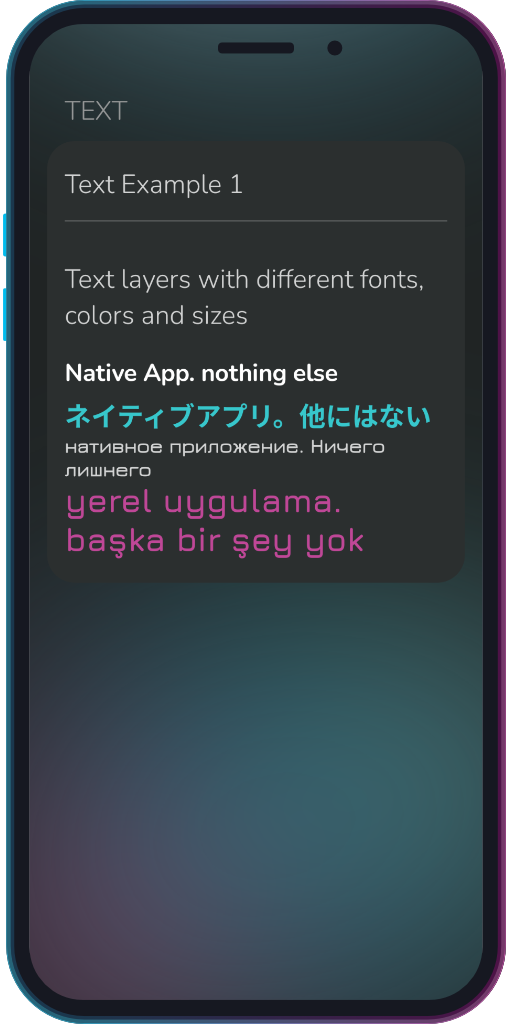

Example 1: Text styling

Show ExampleHide Example

Text layers with different types of fonts, color and size.

{
  "type": "text",
  "value": "$lang(text01Content01)$",
  "font": "nunito-bold",
  "fontSize": "22pt"
}

{
  "type": "text",
  "value": "$lang(text01Content02)$",
  "scaleType": "alignLeft",
  "font": "jura-bold",
  "fontSize": "24pt",
  "fontColor": "#37c7cc"
}

{
  "type": "text",
  "value": "$lang(text01Content03)$",
  "scaleType": "alignLeft",
  "font": "jura-bold",
  "fontSize": "18pt",
  "fontColor": {
    "light": "#202424",
    "dark": "#d2d3d3"
  }
}

{
  "type": "text",
  "value": "$lang(text01Content04)$",
  "scaleType": "alignLeft",
  "font": "jura-bold",
  "fontSize": "30pt",
  "fontColor": "#bf4797"
}

The used fonts must be placed in the font folder.

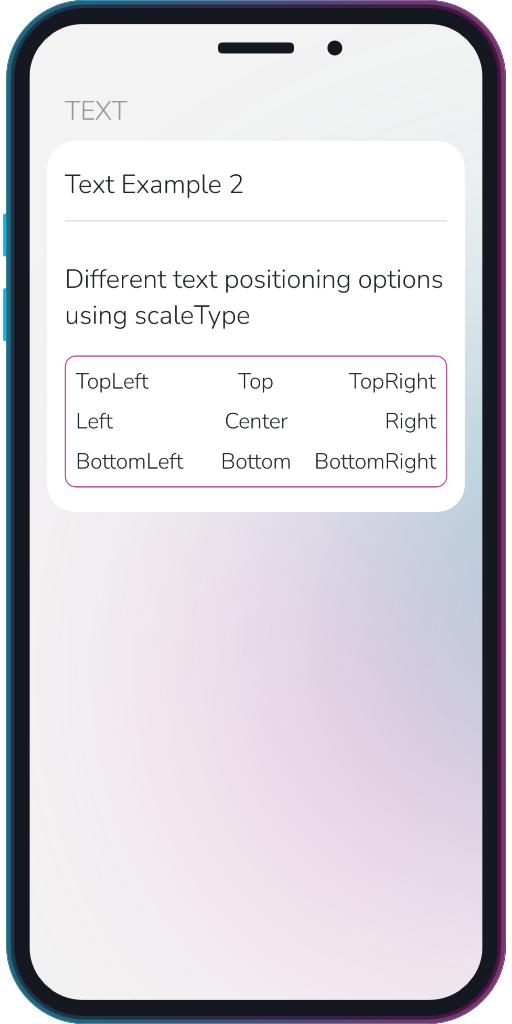

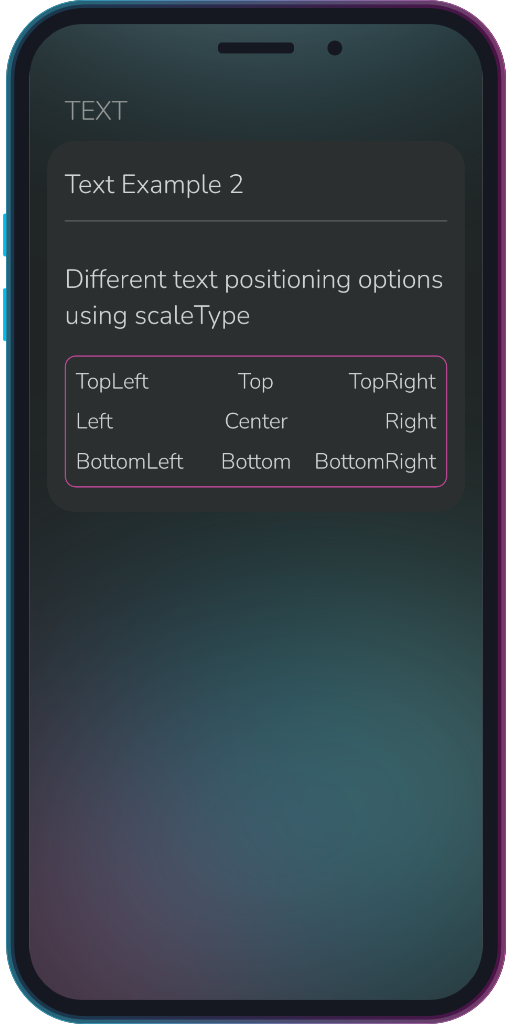

Example 2: Text positioning

Show ExampleHide Example

Different text positioning options using the scaleType field.

{
  "textLayers": [
    {
      "type": "text",
      "value": "TopLeft",
      "scaleType": "alignTopLeft"
    },
    {
      "type": "text",
      "value": "Top",
      "scaleType": "alignTop"
    },
    {
      "type": "text",
      "value": "TopRight",
      "scaleType": "alignTopRight"
    },
    {
      "type": "text",
      "value": "Left",
      "scaleType": "alignLeft"
    },
    {
      "type": "text",
      "value": "Center",
      "scaleType": "alignCenter"
    },
    {
      "type": "text",
      "value": "Right",
      "scaleType": "alignRight"
    },
    {
      "type": "text",
      "value": "BottomLeft",
      "scaleType": "alignBottomLeft"
    },
    {
      "type": "text",
      "value": "Bottom",
      "scaleType": "alignBottom"
    },
    {
      "type": "text",
      "value": "BottomRight",
      "scaleType": "alignBottomRight"
    }
  ]
}

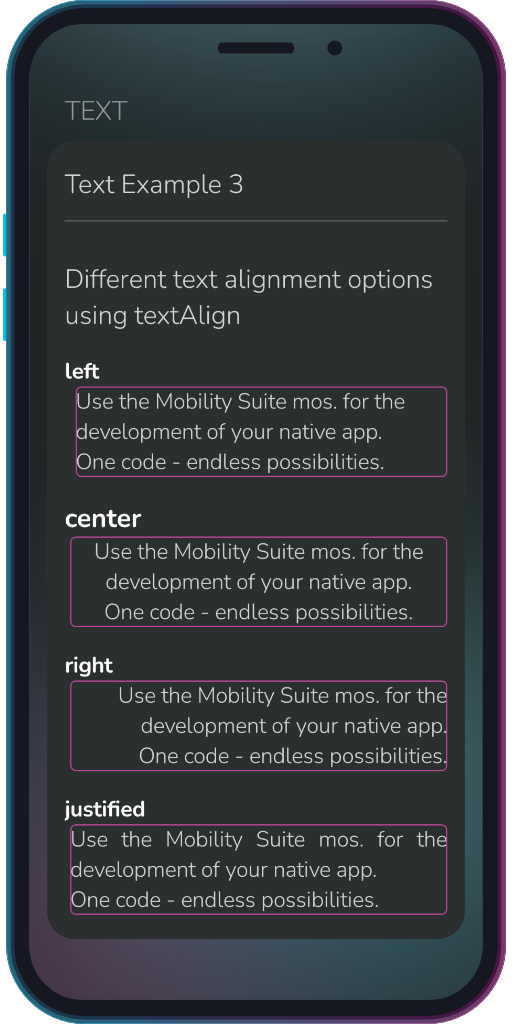

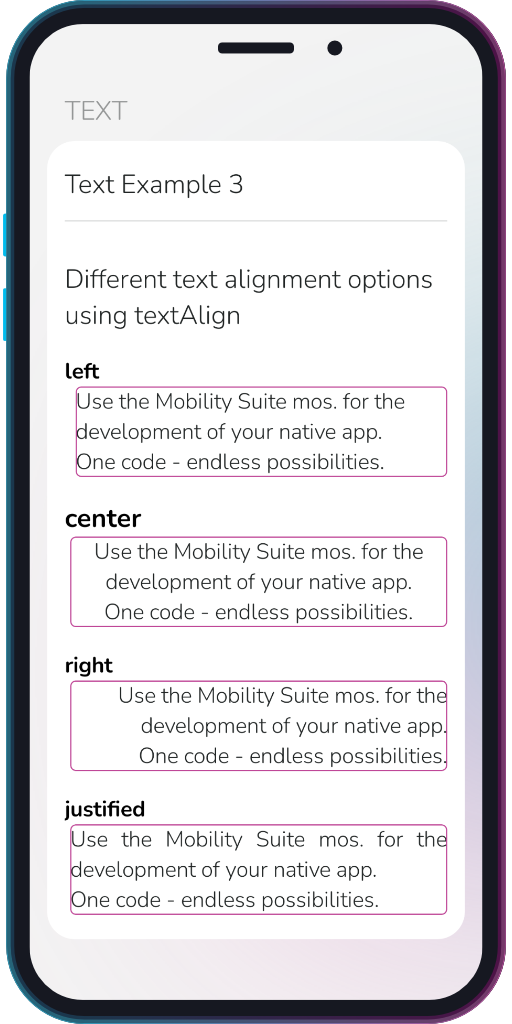

Example 3: Text alignment

Show ExampleHide Example

Different text alignment options using the textAlign field.

{
  "type": "text",
  "value": "$lang(text03Content01)$",
  "textAlign": "left"
}

{
  "type": "text",
  "value": "$lang(text03Content01)$",
  "textAlign": "center"
}

{
  "type": "text",
  "value": "$lang(text03Content01)$",
  "textAlign": "right"
}

{
  "type": "text",
  "value": "$lang(text03Content01)$",
  "textAlign": "justified"
}
